\(QS5_{2}^{(1)}\)
Description
Phase Portrait
Topological Invariants
| TCSP | Fin Sep | Inf Sep |
|---|---|---|
| \(5\) | \(4330\) | \(110110\) |
Example
The quadratic differential system
\[\begin{cases} \dot{x} = y+x^{2}-6 \, x \, y/5 \\ \dot{y} = x^{2}-y^{2}+e+d \, y \end{cases}\]
with parameters: \(d = 0.12, \quad e = -0.01209\)

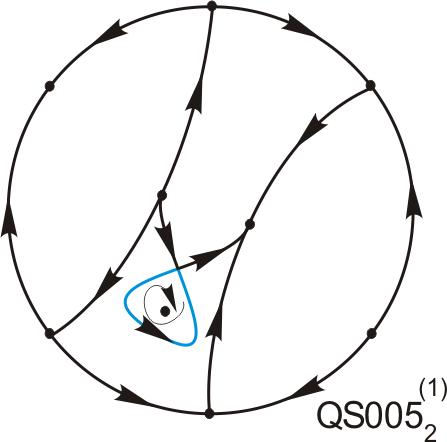

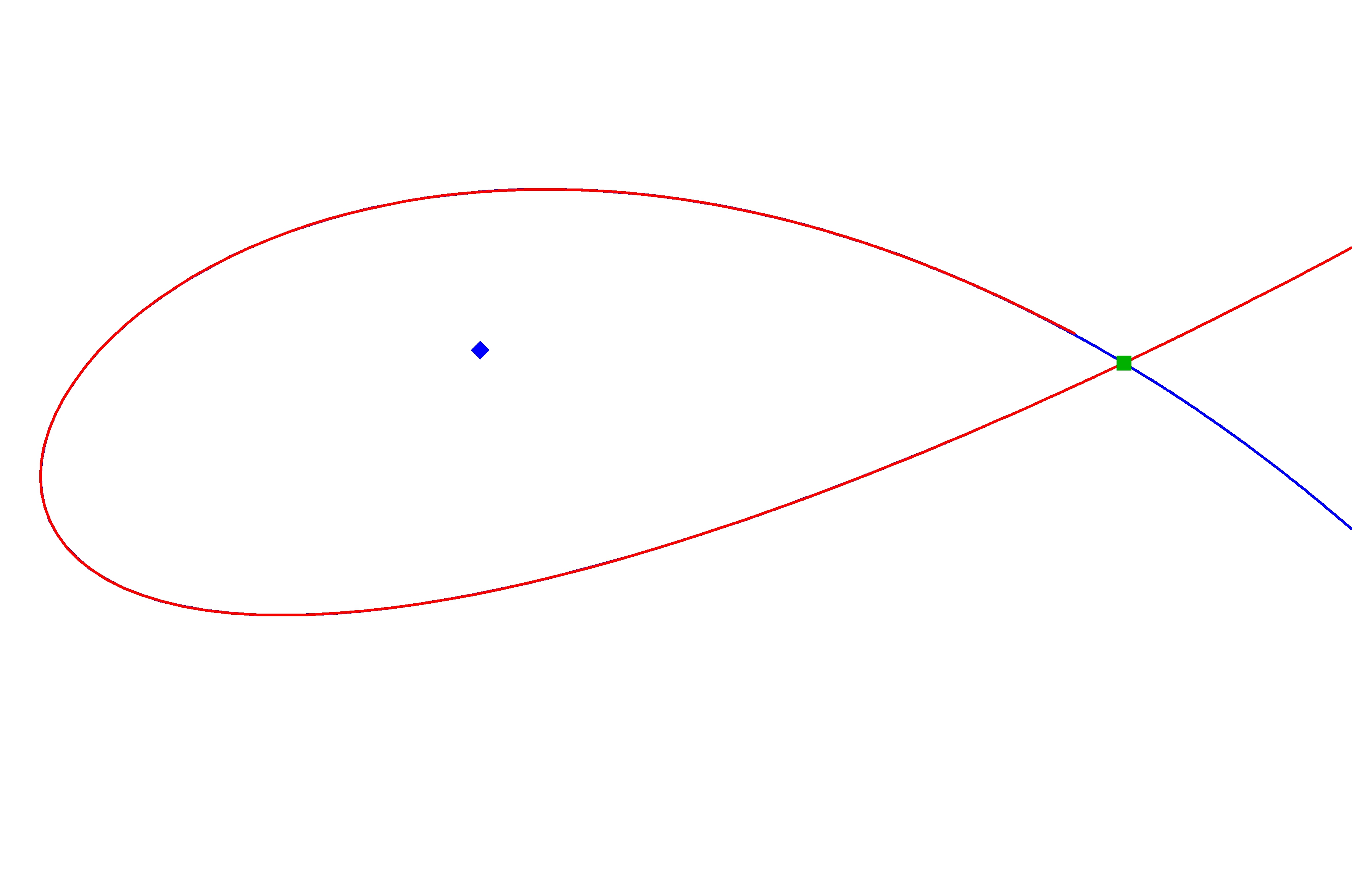

has the following phase portrait done with P4. If you want, you may download the P4 file here. Since the image is not clear enough, we have added a ZOOM of it.
The phase portrait appears in the following papers
- With name \(Fig. 35\) in {J. Llibre and C. Pantazi}, Global phase portraits of the quadratic systems having a singular and irreducible invariant curve of degree 3. Internat. J. Bifur. Chaos Appl. Sci. Engrg. 33 (2023), no. 1, Paper No. 2350003, 54 pp.
- With name \(U^1_{D31}\) in {J. C. Artés, J. Llibre and A. C. Rezende}, Structurally unstable quadratic vector fields of codimension one, Birkhäuser/Springer, Cham, 2018, vi+267 pp.
Bifurcations in codimension 0
- Bifurcation interface between the codimension 0 portrait \(QS5_{2}^{(0)}\) and \(QS5_{2}^{(0)}\).
